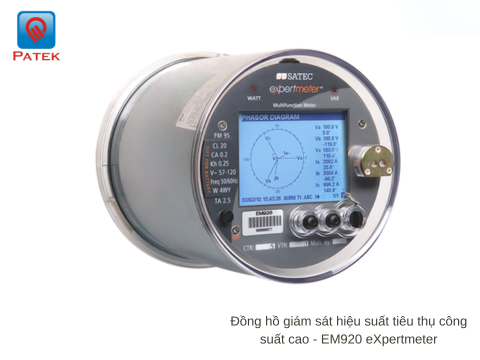

Đồng hồ giám sát hiệu suất tiêu thụ công suất cao - EM920 eXpertmeter
Model: EM920
Nhà sản xuất: SATEC
Xuất xứ: Isarel
The SATEC Model EM920 eXpertmeter™ is an advanced energy analyzer in a socket meter with precise measurement and expansion capabilities.
The EM920’s unique “Add-On” modularity is the key to its remarkable versatility and unprecedented effort to add intelligence, control and communications to electrical metering. SATEC’s “Add-On” module concept allows you to configure the meter to your changing needs, thus saving valuable time in the field or future costly replacements. Technological advancements revitalize legacy applications to rapidly and cost-efficiently respond to changing market conditions.
The Model EM920 eXpertmeter™ is an advanced energy meter that exceeds Class 0.2S class revenue billing requirement. It provides long term memory for load & trend profiles, and includes advanced power quality analysis to detect and record waveform events and fault currents harmful to power systems.
The EM920 eXpertmeter™ is MET certified.
Inputs Ratings | AC Voltage inputs | Va, Vb, Vc and Vref - 50/60Hz | High input impedance = 10MW |
Reference voltage Un 120V up to 277V L-N (direct) standard | Voltage rating: 120 up to 277 Volts (L-N), 207 to 480 Volts (L-L) |
| |
Voltage range Crest factor >2 [VL-N x 1.2 x 2] | 0 -332 V r.m.s, peak up 665V (for PQ) | ||
Maximum Line to Line voltage | 1152 V r.m.s | ||
Temporary over voltage between live conductors and earth Transient over voltage between live conductors and earth (TRM optional module, from 15 μs up to ms) | 1500 V r.m.s
6 kV peak, 2kV measurement | ||
Starting voltage | 0.1%Un | ||
Burden per phase | < 0.5 VA | ||
Overload withstand for 1 minute phase-to-ground (ANSI C12.1 & IEC 62053-22, protective class II) | 4000V r.m.s | ||
Rated impulse voltage (ANSI C12.1 & IEC 62052-11, protective class II) | 6000V peak | ||
Reference voltage Un 57.73V up to 120V LN (via PT) optional | Voltage rating: 57.73 up to 120 Volts (L-N), 100 to 207 Volts (L-L) |
| |
Voltage range Crest factor >2 [VL-N x 1.2 x 2] | 0 -144 V r.m.s, peak up 288V (for PQ) | ||
Maximum Line to Line voltage | 500 V r.m.s | ||
Temporary over voltage between live conductors and earth Transient over voltage between live conductors and earth (TRM optional module, from 15 μs up to ms) | 240 V r.m.s
1.5 kV peak | ||
Starting voltage1 | 0.1%Un | ||
Burden per phase | < 0.2 VA | ||
Overload withstand for 1 minute phase-to-ground (ANSI C12.1 & IEC 62053-22, protective class II) | 4000V r.m.s | ||
Rated impulse voltage (ANSI C12.1 & IEC 62052-11, protective class II) | 6000V peak | ||
Voltage/Current inputs | Terminals for wires size | Blades (Socket meter standard – C12.10) | |
Ground input | Terminals for wires size | According to Socket meter standard – C12.10 | |
AC Current inputs | 3 (4 optional) Galvanic isolated Inputs | ||
Reference Current Basic model In = 5 A (TA = 2.5A) | Current class Imax | 10A & 20A | |
Maximum measurable short circuit current (Isc) | 10 x In | ||
Burden per phase (In = 5 A) | < 0.2 VA | ||
Starting current (I1, I2, I3) – average Starting current (I1, I2, I3) – real time | 0.2% In 1.0% In | ||
Over current withstand for 1 s non-recurring | 50 x In | ||
Isolation | 4000V r.m.s | ||
Terminals for wires size | Blades (Socket meter standard – C12.10) | ||
Blades (Socket meter standard – C12.10) | FORM 9 (39 optional) | ||
Power Supply | Power Supply | Supplied from Monitored Voltage inputs | |
480V model standard (direct) | Three Phase PS, Rated Inputs (L-N) 50/60 Hz | 120 – 277V AC ± 20% | |
Operating voltage range | 96 – 550V AC | ||
Insulation Dielectric withstand | 2500V AC @ 1mn | ||
Operating Temperature range | -40ºC to + 75ºC | ||
Output voltage | +12V DC ± 5% | ||
Burden per phase | 6VA | ||
120 V model optional (via PT) | Three Phase PS, Rated Inputs 50/60 Hz | Three Phase PS, Rated Inputs 50/60 Hz | |
Operating voltage range | 47 – 250V AC | ||
Insulation Dielectric withstand | 2500V AC @ 1mn | ||
Operating Temperature range | -40ºC to + 75ºC | ||
Output voltage | +12V DC ± 5% | ||
Burden per phase (w/o AUX. PS) Burden per phase (w. AUX. PS) | 6VA <0.1VA | ||
Auxiliary AC/DC Power supply1 | |||
AC/DC Optional module | Operating Temperature range | -40ºC to + 75ºC | |
Rated Input, 0-400 Hz | 50-288V AC, 90-290V DC | ||
Isolation | 2500V AC @ 1mn | ||
Output voltage | +12V DC ± 5% | ||
Burden | 6VA | ||
Terminals for wires size | 3 x 2.5 mm2 pig-tail cable | ||
Battery for RTC and SRAM | Minimum operation reserve 48 h. – if no use of battery (According to AS 1284.7/IEC 1038) |
| |
Total reserve capacity shall be not less than 2000h – with use of battery. (According to AS 1284.7/IEC 1038) | Up to 3 years | ||
More than 10 years service battery life (According to AS 1284.7/IEC 1038) |
| ||
Input/Output ports | Fast Status input 2DI basic 8DI Optional module2 | Digital Input optically isolated | |
Dry contacts, internally wetted | 24V DC | ||
Resistance of open contact sensing | > 1Mohm | ||
Resistance of closed contact sensing | < 100 Ohm | ||
Sampling rate | 1 ms | ||
Insulation Dielectric withstand | 2500V AC @ 1mn | ||
Terminals for wires size | 10 x 2.5 mm2 cable | ||
RELAY OUTPUT |
|
| |
Relay Output - KYZ basic | Digital output – SSR optically isolated | 1 | |
1 relay (Form C) | 0.5A @ 250V AC/DC | ||
Operation time Release time | 1 ms 1 ms | ||
Insulation Dielectric withstand | 2500V AC @ 1mn | ||
Terminals for wires size | Blades (Socket meter standard – C12.10) | ||
Relay Output | Digital output – combined SSR + EMR | 4 x FORM C + 2 x FORM A | |
6RO Optional module1 | SSR – 4 relays (FORM C) | 0.15A @ 250V AC/DC | |
Operation time Release time | 1 ms 1 ms | ||
Insulation Dielectric withstand | 2500V AC @ 1mn | ||
EMR – 2 relays (FORM A), ½ cycle operation | 5A @ 250V AC | ||
Operation time Release time | 5-7 ms + ½ cycle 5-7 ms + ½ cycle | ||
Insulation resistance of open contacts | > 2 MΩ or 1000V @ 1mn | ||
Insulation Dielectric withstand | 2500V AC @ 1mn | ||
Terminals for wires size | 16 x 2.5 mm2 cable | ||
Analog Outputs 4AO Optional module1 | Analog output galvanic isolated | 4 | |
Type of Outputs | 4-20 mA default 0-20 mA option 0-1 mA (2mA max.) option ± 1 mA (±2mA max.)option | ||
Non-linearity | 0.2% | ||
Load for 20 mA | <510 Ohm | ||
Accuracy | 0.5% | ||
Power supply | Internal | ||
Insulation Dielectric withstand | 2500V AC @ 1mn | ||
Terminals for wires size | 5 x 2.5 mm2 cable | ||
Communication ports | COM1 IR port Basic | Built-in Infra Red communication port | DISPLAY unit |
RS232 communication, TTL level, max baud rate | 19.2 kb/s | ||
Protocols | MODBUS RTU/ASCII and DNP3.0 | ||
Optically isolated | 2500V AC @ 1mn | ||
Optical port per ANSI C12.18 | Type 2 | ||
COM2 2G (GSM/GPRS)/3G/ 4G cellular or MODEM Optional module1 | Plug-in modules isolated communication port | ||
RS232 communication, TTL level, max baud rate | 115.2 kb/s | ||
Isolation | 2500V AC @ 1mn | ||
GSM/GPRS module | Quad Band GPRS class10 | ||
Antenna connection | Coax cable terminated with SMA connector | ||
Protocols | MODBUS/TCP or DNP3.0/TCP | ||
MODEM module | Telephone Line according to FCCp.68 and TBR21 | ||
Line connection | RJ11 | ||
Protocols | MODBUS/RTU, MODBUS/TCP or DNP3.0, DNP3.0/TCP | ||
COM3 basic | Built-in serial communication port | ||
RS-485 isolated | 115.2 kb/s | ||
Isolation | 2500V AC @ 1mn | ||
Protocols | MASTER/SLAVE MODBUS RTU/ASCII and DNP3.0 | ||
Terminals for wires size | 2 x 2.5 mm2 shielded twisted cable | ||
COM4 ETH-TX MODEM Optional module1 | Plug-in modules isolated communication port | ||
Versatile RS-232/RS-485 |
| ||
Max. Baud rate | 115.2 kb/s | ||
Isolation | 2500V AC @ 1mn | ||
Protocols | MODBUS RTU/ASCII and DNP3.0 | ||
Terminals for wires size | 5 x 2.5 mm2 shielded twisted cable | ||
USB – FS device basic | Communication port | Basic | |
USB communication port | Full speed Device | ||
USB port Baud rate | 12 Mb/s | ||
Protocols | MODBUS RTU/ASCII and DNP3.0 | ||
USB connector | Cable terminated with USB type A | ||
IRIG-B ETH-TX MODEM Optional module1 | Input Isolation | 2500V AC @ 1mn | |
Time code signal | Demodulated (pulse-width coded) | ||
Signal Level | Unbalanced 5V | ||
Terminals for wires size | 2 x 2.5 mm2 twisted cable | ||
Recommended cable | 51Ohm low loss - RG58A/U (Belden 8219 or equivalent), TNC connector | ||
Recommended GPS time code generator | Masterclock GPS-200A | ||
10/100Base-T ETH-TX Optional module1 | Plug-in modules network communication port | ||
Plug-in modules network communication port | IEEE 802.3 | ||
Ethernet port Baud rate | 10/100 Mb/s | ||
Protocols | MODBUS/TCP or DNP3.0/TCP protocols and IEC 61850-8-1, up to five non-intrusive simultaneous connections, Telnet service port | ||
ETH port Isolation | 2500V AC @ 1mn | ||
ETH connector | ETH shielded cable terminated with Standard RJ-45 shielded connector | ||
Console Display Unit | Display Panel |
|
|
Display Panel | LCD graphic bright display | Multiple screens display | |
Resolution | 340 x 220 dots | ||
Size | 4’ | ||
Operational temperature | -20°C to + 70°C | ||
Backlit LCD display screen | Timeout operation | ||
LEDs | Energy LED Pulsing | 2 x RED (WATT & VAR) | |
Communication | IR port, COM1 | ANSI C12.18 | |
Navigator buttons | Accessible Buttons – SCROLL, SELECT/ENTER | 2 | |
Sealed Button – DEMAND RESET | 1 | ||
Under cover Button – TEST mode | 1 | ||
Real Time Clock |
| 5 ppm Accuracy @ 25°C | 2.7 minute / year |
| RTC backup data retention | 5 years | |
Log Memory | Non-volatile memory (20years Data retention) | For energy and tariff registers logging, EV-PQ-DATA-WV log | 16 MB |
Environmental Conditions |
| Operational temperature | -40 ºC to 75 ºC |
| LCD Operational temperature | -20 ºC to 70 ºC | |
| Storage temperature | -40 ºC to 85 ºC | |
| Humidity | 0 to 95% non-condensing | |
Construction | Enclosure With sealing cover | Socket Meter base enclosure | ANSI C12.10 for electronic meter |
Size: | Æ 6" x L 7" x base Æ 7" | ||
Weight | 4 lb | ||
Mounting | ANSI C12.10 – FORM 9S/9A | ||
Standards Compliance | EMC Immunity | ANSI C12.1 | Reference: IEC 61000 |
Surge – IEEE C62.41.2-2002 100kHz ring wave 1.2/50 µs – 8/20 µs |
6kV / 0.5kA 6kV / 3kA | ||
Magnetic field – ANSI C12.1 |
| ||
FTB – IEC 61000-4-4, level 4 | 4kV – measuring inputs 2kV – I/O and com. | ||
SWC – IEEE C37.90.1 | 2.5kV – measuring inputs, I/O an com. | ||
Electromagnetic RF Fields – ANSI C12.1 | 20V/m @ 200kHz – 10GHz | ||
ESD - IEC61000-4-2 | 15KV – air | ||
Emission | Radiated / Conducted - FCC/CFR 47 p.15 | Class B | |
Safety | ANSI C12.1 |
| |
Insulation, ANSI C12.1 | 2.5 KV r.m.s. @ 1mn | ||
Environment | Mechanical Shock - IEC 60068-2-27 :1987 / ANSI C12.1: 2008 | 15g @ 11ms | |
Mechanical Vibration - IEC 60068-2-6 :1987 / ANSI C12.1: 2008 | 0.5g @ 30-350 Hz | ||
Transportation drop and vibration – ISTA 1A / ANSI C12.1 |
| ||
Operational temperature – ANSI C12.1 | -40 ºC to 75 ºC | ||
Storage temperature – ANSI C12.1 | -40 ºC to 85 ºC | ||
Humidity – ANSI C12.1 |
| ||
Measurements and Accuracy | ANSI C12.1 Active Energy measurement - ANSI C12.20 class 10/20 | Class 0.2S | |
Power Quality | PQ methods – IEC 61000-4-30 | Class A | |
Harmonics & Interharmonics measurements – IEC 61000-4-7 | Class I | ||
Flicker measurements – IEC 61000-4-15 | Class I | ||
Report – EN50160 |
|
-
